Moving Down The Line

Industrial Hose

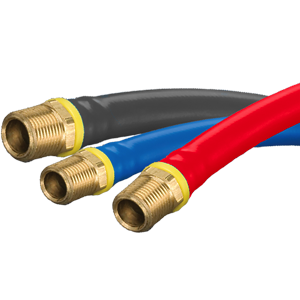

Push-Lock Hose

Wide range of applications where performance and ease of assembly are demanded. No clamps or ferrules required when using Push-On fittings.

Cover Material: Synthetic rubber, oil, flame and abrasion resistant. Available in multiple colors
Reinforcement: Braided textile - angled for push-on fitting
Tube Material: Nitrile – RMA Class A oil resistance
Temperature Range: -30ºF (-34ºC) to 180ºF (+82ºC)
Sizes: 0.25, 0.37, 0.50, 0.62, and 0.75in.

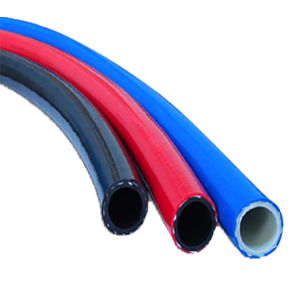

General Purpose PVC

A general purpose PVC air and water hose for in plant and outdoor applications in temperate climate conditions.

Cover Material: Excellent abrasion resistant PVC compound. Available in multiple colors
Reinforcement: High tensile strength yarn
Tube Material: Black PVC compound
Temperature Range: -14ºF (-10ºC) to 150ºF (+65ºC)
Sizes: 0.25, 0.37, 0.50, 0.62, 0.75, and 1 in.

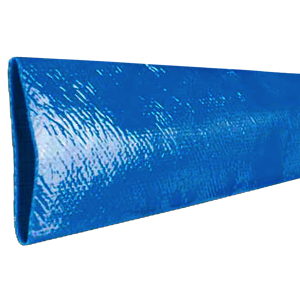

PVC Lay-Flat Hose

A general purpose PVC water discharge hose. Features a balanced polyester yarn spiral wrap, longitudinal strength member and homogeneous PVC tube and cover to prevent separation.

Cover Material: Homogeneous PVC
Reinforcement: Polyester yarn spiral wrap
Tube Material: Homogeneous PVC
Temperature Range: -5ºF (-20ºC) to 170ºF (+76ºC)
Sizes: 0.75, 1, 1.25, 1.50, 2, 3, 4, 6, and 8 in.

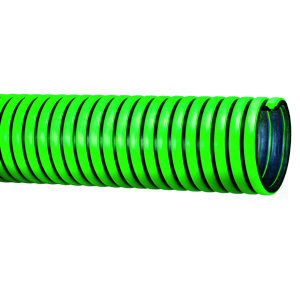

EPDM Suction Hose

Septic, waste water and liquid manure handling; agricultural liquid fertilizers and standard duty water suction, as well as suction and transfer for rental, construction and trash pumps.

Cover Material: EPDM rubber
Reinforcement: Polyethylene helix
Tube Material: EPDM rubber
Temperature Range: -40ºF (-40ºC) to +140ºF (+60ºC)
Sizes: 1.50, 2, 3, and 4 in.

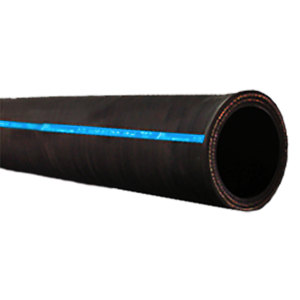

Hot Tar & Asphalt Hose

An excellent hose for the transfer of high temperature hot tar, asphalt, and other petroleum based materials in suction and delivery services.

Cover Material: Black CSM - abrasion, ozone and hot tar resistant
Reinforcement: High tensile textile cords with steel helix wires
Tube Material: Black NBR - hot tar and asphalt resistant
Temperature Range: -4ºF (-20ºC) to 356ºF (+180ºC)
Sizes: 2, 3, and 4 in.



Dredge Sleeve

A very heavy hose intended for the severe service of discharge lines on dredges.

Cover Material: Weather resistant SBR
Reinforcement: Multiple plies of all-polyester belt fabrics
Tube Material: Abrasion resistant SBR. Available in 3/8”, 1/2" or 3/4" tube gauges
Temperature Range: -25ºF (-32ºC) to +180ºF (+82ºC)
Sizes: 4, 6, 8, 10, and 12 in.

PVC Tank Truck Hose

For deliver of gasoline, diesel fuel, kerosene and other fuels with aromatic content to 40%.

Cover Material: NBR/PVC with embedded Safety Ohm ground wire.
Reinforcement: High tensile textile cord and highly flexible PVC helix
Tube Material: NBR/PVC
Temperature Range: -10°F (-23°C) to +140°F (+60°C)
Sizes: 2, 3, and 4 in.



Chemical Hose

Suction and transfer service for a variety of chemicals and solvents. Will handle 90% of existing chemicals.

Cover Material: SBR/EPDM - abrasion and ozone resistant
Reinforcement: High tensile textile cords and 4 highly flexible steel helix wires.
Tube Material: Transparent XLPE or UHMW
Temperature Range: -4ºF (-20ºC) to 150ºF (+65ºC)
Sizes: 0.75, 1, 1.25, 2, 3, and 4 in.

Silicone Ducting

Two-ply smooth silicone-coated polyester fabric hose with helically-wound spring steel wire for flexibility. Double continuous-filament, silicone-coated fiberglass cord for durability.

Cover Material: Two-ply smooth silicone-coated polyester fabric
Reinforcement: Helically-wound spring steel wire
Tube Material: Double silicone-coated fiberglass cord
Temperature Range: -80ºF (-62ºC) to 600ºF (+361ºC)
Sizes: 1, 1.50, 1.75, 2, 2.50, 3, 4, 5, 6, and 8 in.

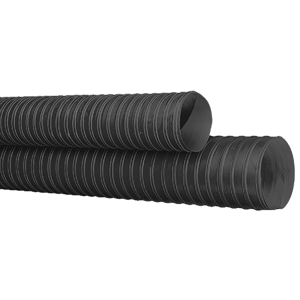

Neoprene Ducting

Neoprene-coated two-ply polyester ducting for dust collection, air movement, fume control and light material handling.

Cover Material: Neoprene-coated
Reinforcement: Double-ply polyester construction
Temperature Range: -65ºF (-54ºC) to 250ºF (+127ºC)
Standard packaging: 25' lengths in cartons.
Sizes: 1.50, 2, 2.50, 3, 4, 6, 8, 10, 12, and 16 in.
